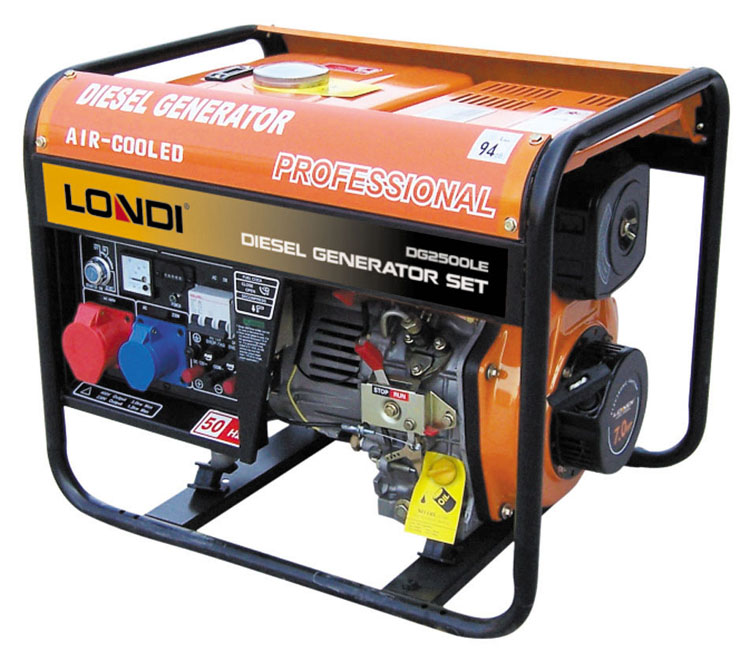

DG2500L(E)

Technical Parameter
Rated frequency [Hz]	50	60
Rated voltage [V]	230	240/120
Rated current [A]	7.4	8.3/16.7
Rated output power [KVA]	1.7	2.0
Max output power [KVA]	2.0	2.3
Rated rotation speed [rpm]	3000	3600
DC output	12V8.3A
Power factor [cosφ]	1.0
Phase	Single phase
Noise level [dB(A)@7m]	78-79
Overall dimension (LxWxH) [mm ]	660x480x540
Dry weight [kg]	53 recoil? 60 electric
Engine model	LD170F(E)
Engine type	Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement [ml(cu.in)]	211 (25.51)
Lube	SAE 10W30
Starting system	L:recoil starter    E:electric starter
