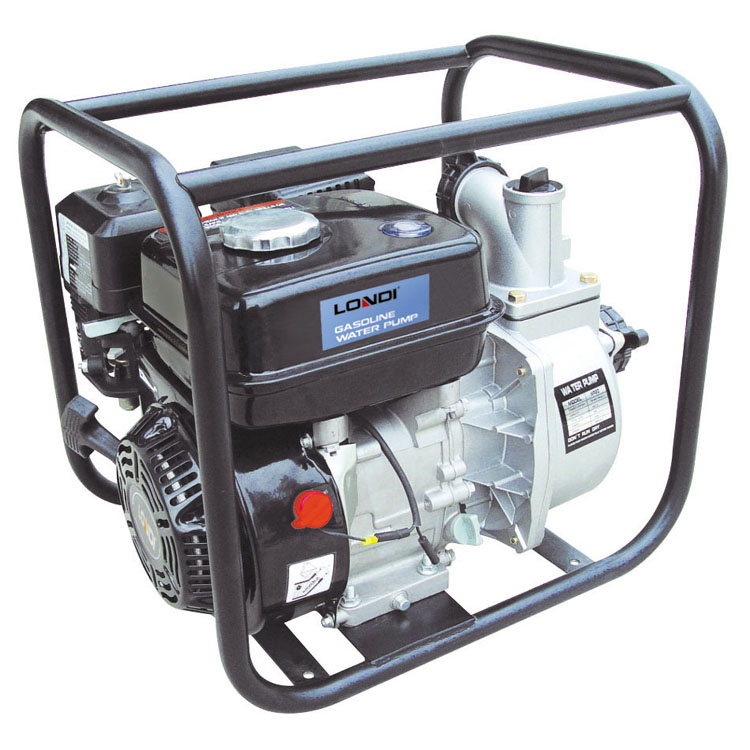

HP-15G

Technical Parameter

 Suction, discharge port diameter [mm(in)]

 40 (1.57)

 Discharge capacity [m3/h]

 10

 Total head lift [m(ft)]

 50 (165.85)

 Max suction head [m(ft)]

 8 (26.25)

 Rotation speed [rpm]

 3600

 Priming time [s/4m]

 40

 Overall dimension (LxWxH) [mm]

 515x385x455

 Dry weight [kg]

 29

 Engine model

 LD160

 Rated power [KW(Hp)]

 3.7 (5.03)

 Rated rotation speed [rpm]

 3600

 Fuel tank capacity [L(gal.)]

 3.5 (0.77)

 Fuel consumption [g/KW.h]

 283
