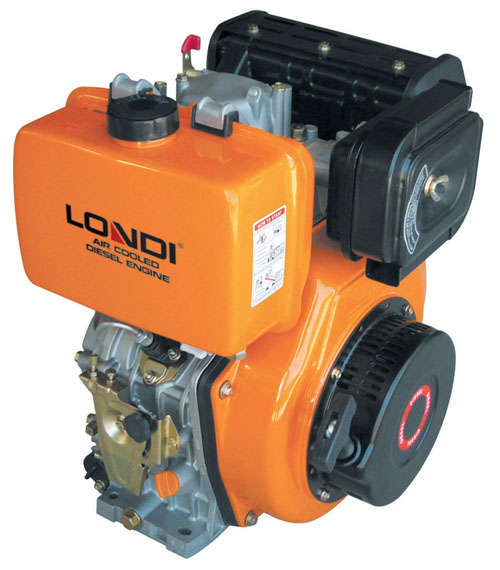

LD186F(E)

Technical Parameter
Engine	Single cylinder. 4-stroke, air-cooled, direct injection, diesel engine
Bore x stroke [mm]	86x70
Displacement [ml]	406
Engine speed [rpm]	3000/3600
Compression ratio	19:1
Rated output power [KW(Hp)]	5.7 (7.75)/3000
Max output power [KW(Hp)]	6.3 (8.57)/3600
Fuel	0# (summer) or -10# (winter)light diesel oil
Fuel tank volume [L(gal.)]	5.5 (1.21)
Fuel consumption rate [g(ml)/KW.h]	≤280 (333)
Lubrication oil volume [L(gal.)]	1.65 (0.36)
Power-Take-Off	Crankshaft or camshaft
Starting system	Recoil or electric
Overall dimension(LxWxH) [mm]	500x475x555
Dry weight [kg(lbs.)]	48 (105.6) recoil    53 (116.6) electric
