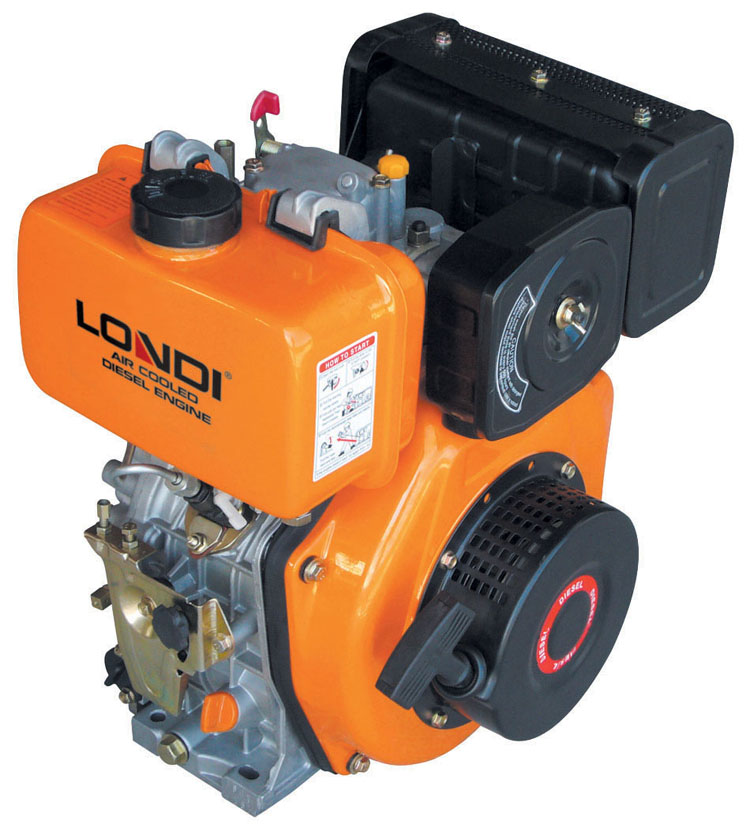

LD178F(E)

Technical Parameter
Engine	Single cylinder. 4-stroke, air-cooled,direct injection, diesel engine
Bore x stroke [mm]	78x62
Displacement [ml]	296
Engine speed [rpm]	3000/3600
Compression ratio	20:1
Rated output power [KW(Hp)]	3.7 (5.03)/3000
Max output power [KW(Hp)]	4.0 (5.44)/3600
Fuel	0# (summer) or -10# (winter)light diesel oil
Fuel tank volume [L(gal.)]	3.5 (0.77)
Fuel consumption rate [g(ml)/KW.h]	≤283 (337)
Lubrication oil volume [L(gal.)]	1.1 (0.24)
Power-Take-Off	Crankshaft or camshaft
Starting system	Recoil or electric
Overall dimension(LxWxH) [mm]	480x460x520
Dry weight [kg(lbs.)]	33 (72.6) recoil    38 (83.6) electric
