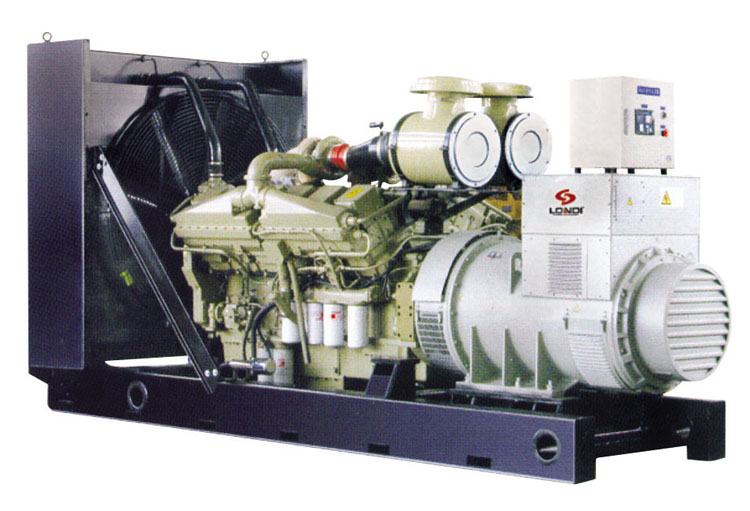

CUMMINS SERIES GENERATING SETS

Main technical parameter of CUMMINS series diesel generator unit
Generator model	Model of engine	Power output				Fuel consumption (g/kwh)	Dimensions (mm)			Net weight (Kg)
		50Hz		60Hz
		KAV	KW	KAV	KW		L	W	H
LDC34	4BTA3.9-G	43	34	50	40	8.6	1800	700	1300	810
LDC45	4BTA3.9-G	56	45	60	48	11	1800	700	1300	860
LDC80	6BT5.9-G	100	80	110	88	24	2270	820	1300	1150
LDC100	6BTAA5.9-G	125	100	138	110	28	2270	820	1300	1200
LDC130	6CTA8.3-G	162	130	175	140	36	2510	820	1300	1600
LDC160	6CTAA8.3-G	200	160	213	170	50	2510	820	1300	2100
LDC200	NTA855-G1	250	200	312	250	62	3155	1050	1540	3400
LDC200-1	NT855-GA	250	200	-	-	54.9	3155	1050	1540	3300
LDC250S	NTA855-G1A	312	250	-	-	62.2	3155	1050	1540	3350
LDC250	NTA855-G2	312	250	344	275	70	3155	1050	1540	3650
LDC286	NTA855-G4	358	286	381	305	76	3155	1050	1540	4495
LDC300S	NTA855-G2A	375	300	-	-	74.4	3155	1050	1540	4495
LDC300	NTA855-G7	375	300	438	350	85.5	3155	1050	1540	4495
LDC300-1	KTA19-G2	375	300	438	350	83.0	3440	1300	1915	4630
LDC364	KTA19-G3	455	364	510	410	97.0	3440	1300	1915	4850
LDC400	KTA19-G4	500	400	562	450	106.0	3440	1300	1915	4900
LDC420	KTAA19-G5	455	420	600	480	113.0	3443	1300	1916	5010
LDC440	KTAA19-G6	550	440	612	490	118.5	3443	1300	1916	5010
LDC500	KTAA19-G7	625	500	775	620	127.8	3443	1300	1916	5010
LDC500-1	KT38-G	625	500	775	620	140.0	4336	1900	2310	7300
LDC600	KTA38-G2	750	600	906	725	167.0	4455	1900	2310	8374
LDC800	KTA38-G5	1000	800	1100	880	209.0	4455	1900	2310	9000
LDC1000S	KTAA38-G9	1250	1000	-	-	258.0	4455	1900	2310	9900
