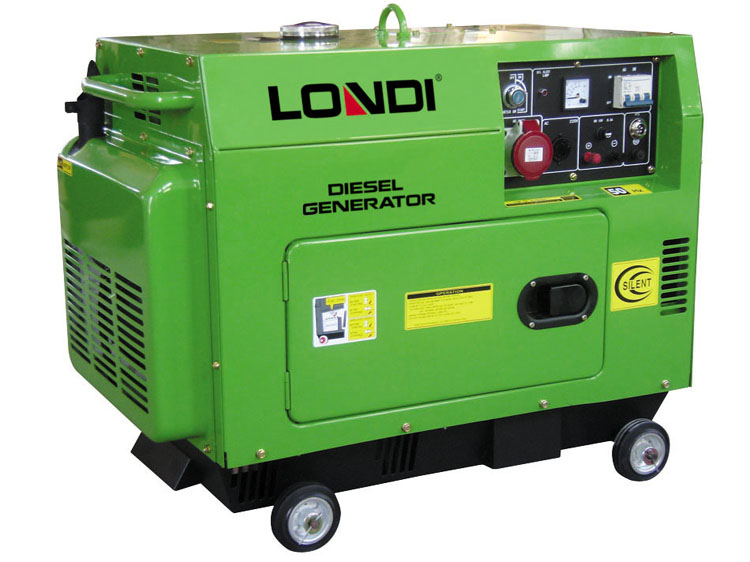

DG5500LN

Technical Parameter
Rated frequency [Hz]	50	60
Rated voltage [V]	230	240/120
Rated current [A]	18.3	19.2/38.3
Rated output power [KVA]	4.2	4.6
Max output power [KVA]	4.5	5.0
Rated rotation speed [rpm]	3000	3600
DC output	12V8.3A
Power factor [cosφ]	1.0
Phase	Single phase
Noise level [dB(A)@7m]	70-74
Overall dimension (LxWxH) [mm ]	950x565x770
Dry weight [kg(Ibs.)]	165 (363)
Engine model	LD186FE
Engine type	Single cylinder, 4-stroke, air-cooled,  direct injection, diesel engine
Displacement [ml(cu.in)]	406 (24.78)
Lube	SAE 10W30
Battery	With 12V-32Ah
