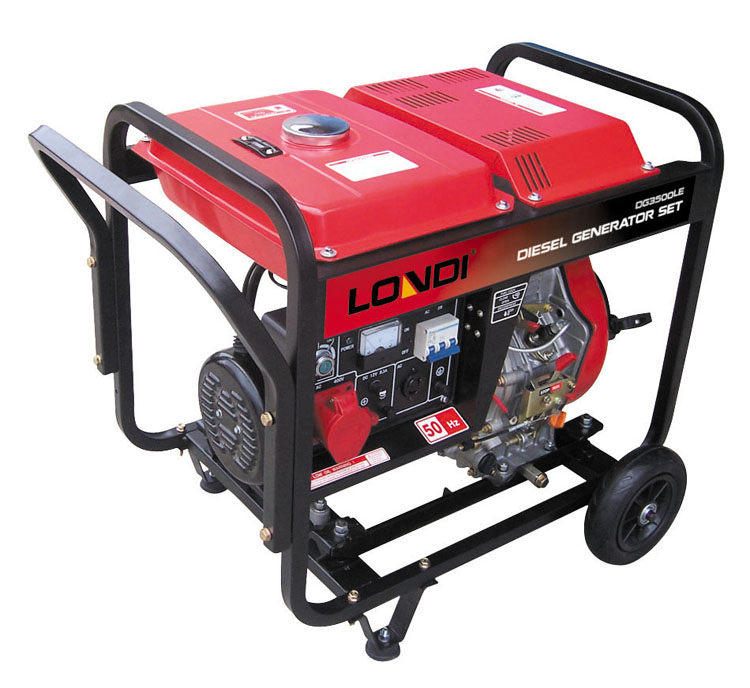

DG3500L(E)

Technical Parameter
Rated frequency [Hz]	50	60
Rated voltage [V]	230	240/120
Rated current [A]	12.2	12.5/25
Rated output power [KVA]	2.8	3.0
Max output power [KVA]	3.0	3.3
Rated rotation speed [rpm]	3000	3600
DC output	12V 8.3A
Power factor [cosφ]	1.0
Phase	Single phase
Noise level [dB(A)@7m]	81-83
Overall dimension (LxWxH) [mm ]	700x500x575
Dry weight [kg]	53 recoil 60 electric
Engine model	LD178F(E)
Engine type	Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement [ml(cu.in)]	296 (18.06)
Lube	SAE 10W30
Starting system	L:recoil starter    E:electric starter
