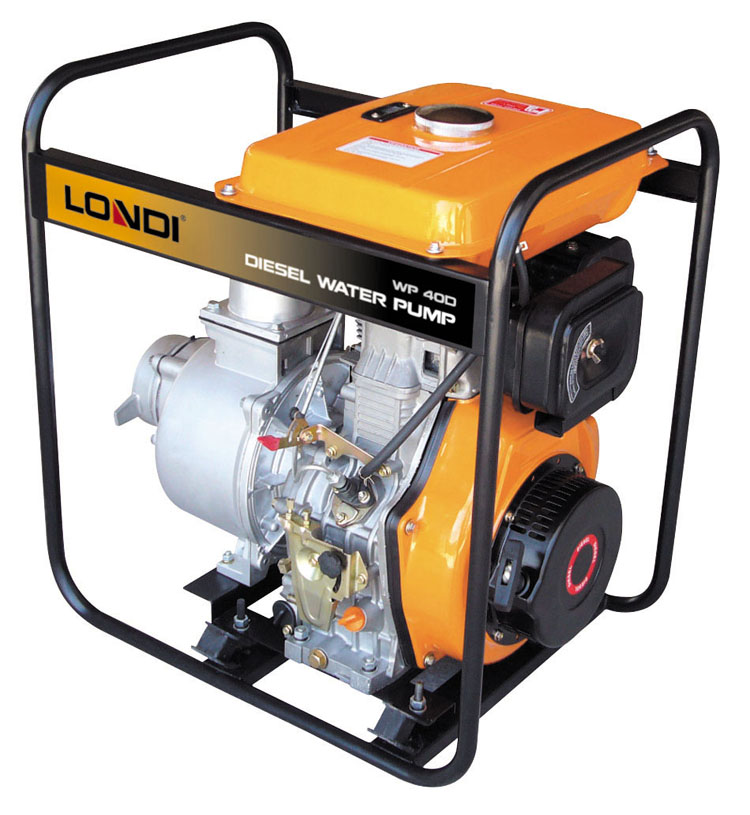

WP-40D(E)

Technical Parameter
Suction, discharge port diameter [mm(in)]	100 (3.94)
Discharge capacity [m3/h]	40
Total head lift [m(ft)]	28 (91.86)
Max suction head [m(ft)]	8 (26.25)
Rotation speed [rpm]	3600
Priming time [s/4m]	180
Overall dimension (LxWxH) [mm]	670x490x625
Dry weight [kg(lbs.)]	69 (151.8)
Engine model	LD186F(E)
Rated power [KW(Hp)]	6.30 (8.50)
Rated rotation speed [rpm]	3600
Displacement [ml(cu.in)]	406 (24.78)
Starting system	Recoil starter/Electric starter
Fuel tank capacity [L(gal.)]	Small tank 5.5 (1.21)
Fuel consumption [g(ml)/KW.h]	280 (333.3)
