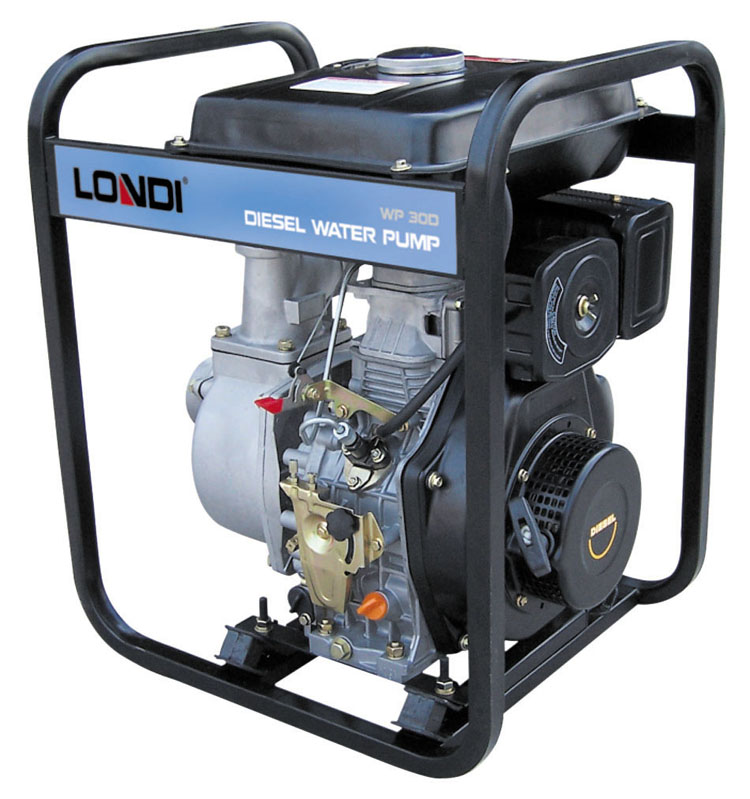

WP-30D(E)

Technical Parameter
Suction, discharge port diameter [mm(in)]	80 (3.15)
Discharge capacity [m3/h]	30
Total head lift [m(ft)]	25 (82.02)
Max suction head [m(ft)]	8 (26.25)
Rotation speed [rpm]	3600
Priming time [s/4m]	120
Overall dimension (LxWxH) [mm]	585x470x575
Dry weight [kg(lbs.)]	52 (114.4)
Engine model	LD178F(E)
Rated power [KW(Hp)]	4.10 (5.50)
Rated rotation speed [rpm]	3600
Displacement [ml(cu.in)]	296 (18.06)
Starting system	Recoil starter/Electric starter
Fuel tank capacity [L(gal.)]	Small tank 3.5 (0.77)
Fuel consumption [g(ml)/KW.h]	283 (336.9)
