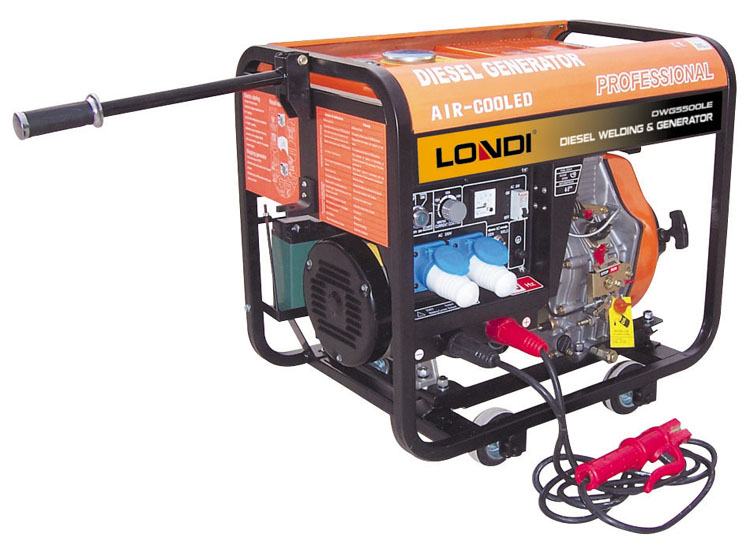

DWG5500LE

Technical Parameter
Rated frequency [Hz]	50	60
Rated voltage [V]	230	240
Rated current [A]	9.6	10.42
Rated output power [KVA]	2.2	2.5
Rated welding DC current (A)	160
Rated welding work voltage (V)	26
Welding load continuous ratio	40%
Current regulation range (A)	50-180
Power factor [cosφ]	1.0
Phase	Single phase
Overall dimension (LxWxH) [mm]	740x500x680
Dry weight [kg(lbs.)]	102 (224.4)
Continuous running time (at rated load)	12 hours
Starting system	Recoil starter/Electric starter
Engine model	LD186F(E)
Engine type	Single cylinder, 4-stroke, air-cooled,  direct injection, diesel engine
Displacement [ml(cu.in)]	406 (24.78)
Lube	SAE 10W30 (above CC grade)
Fuel tank Capacity [L(gal.)]	12.5 (2.75)
