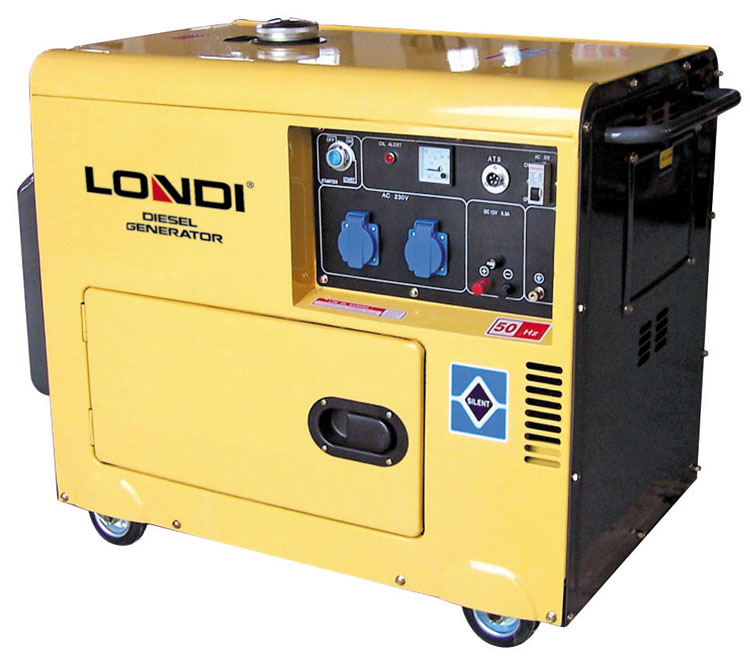

DG3500LN

Technical Parameter
Rated frequency [Hz]	50	60
Rated voltage [V]	230	240/120
Rated current [A]	12.2	13.8/27.5
Rated output power [KVA]	2.8	3.0
Max output power [KVA]	3.0	3.3
Rated rotation speed [rpm]	3000	3600
DC output	12V8.3A
Power factor [cosφ]	1.0
Phase	Single phase
Noise level [dB(A)@7m]	70-74
Overall dimension (LxWxH) [mm ]	880x565x770
Dry weight [kg(Ibs.)]	140 (308)
Engine model	LD178FE
Engine type	Single cylinder, 4-stroke, air-cooled,  direct injection, diesel engine
Displacement [ml(cu.in)]	296 (18.06)
Lube	SAE 10W30
Battery	With 12V-32Ah
